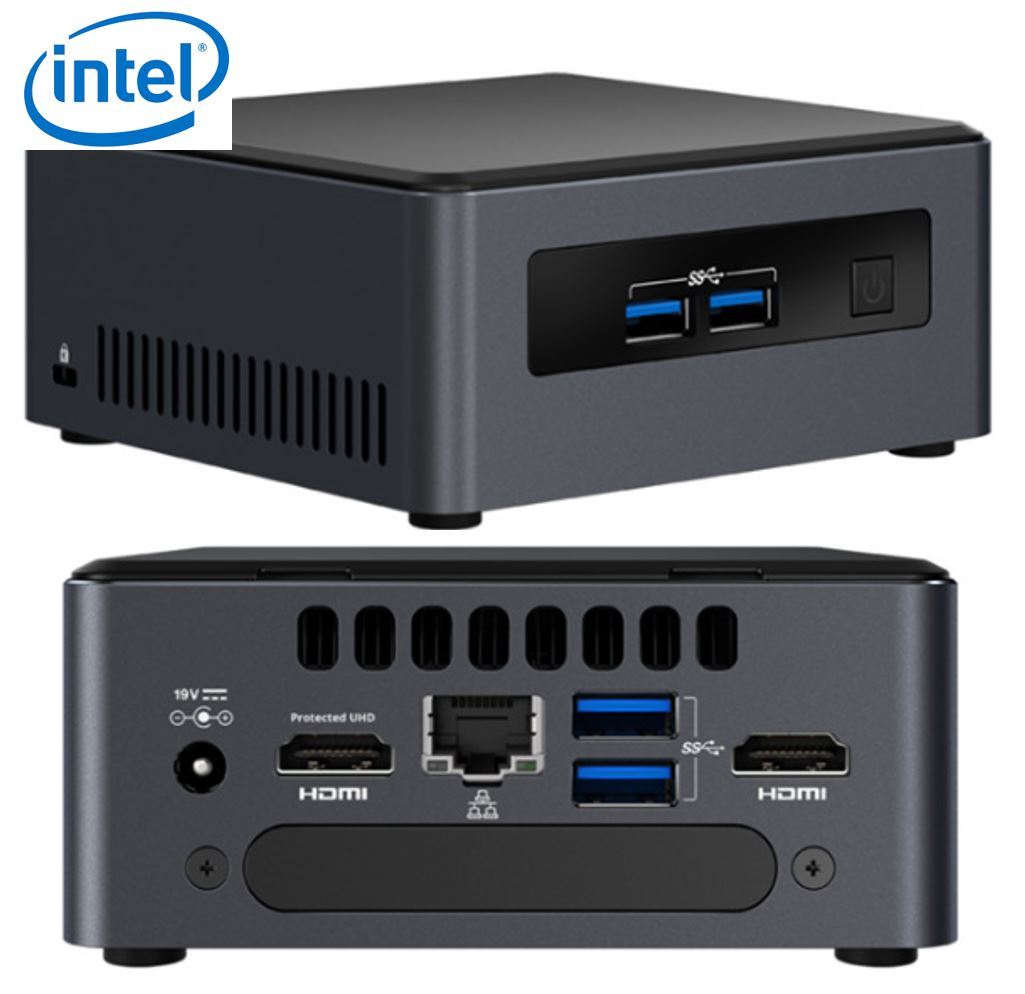

INTEL NUC mini PC i7-8650U 4.2GHz 2xDDR4 SODIMM M.2 & 2.5' SSD 2xHDMI

Intel NUC mini PC i7-8650U 4.2GHz 2xDDR4 SODIMM M.2 & 2.5' SSD 2xHDMI 2xDisplays GbE LAN WiFi BT 4xUSB3.0 vPro for Digital Signage POS Essentials Product CollectionIntel® NUC Kit with 8th Generation Intel® Core™ Processors Code NameProducts formerly Dawson Canyon StatusLaunched Launch DateQ1'18 Board Form FactorUCFF (4' x 4') SocketSoldered-down BGA Internal Drive Form FactorM.2 and 2.5' Drive # of Internal Drives Supported2 TDP15 W DC Input Voltage Supported12-24 VDC Processor IncludedIntel® Core™ i7-8650U Processor (8M Cache, up to 4.20 GHz) Warranty Period3 yrs Supplemental Information Embedded Options AvailableYes Description8th Gen Commercial Intel® NUC Memory & Storage Max Memory Size (dependent on memory type)32 GB Memory TypesDDR4-2400 1.2V SO-DIMM Max # of Memory Channels2 Max # of DIMMs2 ECC Memory Supported ‡No Processor Graphics Integrated Graphics ‡Yes Graphics OutputDual HDMI 2.0a, 4-lane eDP 1.4 # of Displays Supported ‡2 Expansion Options PCI Express RevisionGen 3 PCI Express Configurations ‡PCIe x4: M.2 22x80 (key M) slot PCIe x1: M.2 22x30 (key E) slot M.2 Card Slot (wireless)22x30 (key E) slot M.2 Card Slot (storage)22x80 (key M) slot I/O Specifications # of USB Ports4 USB Configuration2x front and 2x rear USB 3.0; 1x USB 3.0 and 2x USB 2.0 via internal headers USB Revision2.0, 3.0 USB 2.0 Configuration (External + Internal)0 + 2 USB 3.0 Configuration (External + Internal)2B 2F +1 Total # of SATA Ports2 Max # of SATA 6.0 Gb/s Ports2 RAID Configuration2.5' HDD/SSD + M.2 SATA/PCIe SSD (RAID-0 RAID-1) Serial Port via Internal HeaderYes Integrated LANIntel® i219-LM 10/100/1000 Mbps Ethernet Integrated Wireless‡Intel® Wireless-AC 8265 vPro (IEEE 802.11ac 2x2) Integrated BluetoothYes Additional HeadersFront_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); HDMI_CEC; Internal 2x2 power connector Package Specifications Low Halogen Options AvailableSee MDDS Advanced Technologies
